GPD WIN Max Mini Gaming Laptop Small PC Notebook 8 Inch Touch Screen CPU I5 1035G7 RAM 16GB ROM 512GB 15000mAh Battery Backlight

$982.00

475 in stock

China
AUEUJPUKUS
Intel I5
Clear

GPD WIN Max

Handheld Game Console for AAA Games

Win 10 OS | PC Game

Handheld Game Console for AAA Games
Single Gaming Benchmarks
Description: Testing environment: i5-1035G7 / 16GB LPDDR4X 3733 / 512GB NVMe SSD / 1280 × 800 / Windows 10 Home version 1909.
WIN Max Can Play Large Online Games
WIN Max has gamepad/mouse switch mode
You can easily use the joystick to control games
Use key modification tools such as “JoyToKey”
To connect keyboard with gamepad
Online Gaming Benchmarks
Description: Testing environment: i5-1035G7 / 16GB LPDDR4X 3733 / 512GB NVMe SSD / 1280 × 800 / Windows 10 Home version 1909.
Where To Download Games?
External eGFX Device Via Thunderbolt 3
Get The Best Gaming Experience

Notes: eGFX refers to a standard proposed by Intel for a complete set of external graphics solutions that covers various components such as power supply, motherboard, graphics card, and interface while eGPU only refers to the external graphics card. Currently in the retail market, eGFX products have many names, including eGPU, graphics dock, external graphics enclosure, external graphics dock and so on.
Support Plenty Of Popular Tools Software
Full Function Productivity Tool
Can Run Smoothly Adobe, Autodesk,Microsoft ,Etc Full Series Of Productivity Tools
8-inch Screen I Higher Clarity
90% DCI-P3 I DC Dimming
500nits Brightness I 10-point Touch

How Could An 8-inch 1280×800 Screen Better
Than A Regular Laptop Screen?
Notes: As can be seen from the above figure, the PPI of WIN Max exceeds that of common laptops currently on the market. Players do not need to worry about the display quality of WIN Max, because the clarity of its panel is clearly better than that of an ordinary laptop!
Newly Designed Joysticks

Dual Fans + Cooling Pipes, High Displacement
Side-blow Design,
9 Ventilation Holes For Fast Heat Dissipation
Built-in backlit keyboard, mouse and touchpad
Intel 10th Gen Core ™ i5-1035G7 Processor
With The Help Of 10nm Processing Technology

The Single/Multi-core Performance Of I5-1035G7

Has Surpassed i7-4790K

WIN Max's Built-in i5-1035G7 SoC Integrates
The 11th-gen Iris Plus Graphics 940
Has 64 EU Execution Units
Integrated Graphics That Rivals MX250
16GB LPDDR4X 3733, The Fastest Low-power Memory
The Following Table Shows The Memory Benchmark
Results Of LPDDR3-1866 And LPDDR4X-3733 In AIDA64
LPDDR4X 3733 Is Obviously Better Than Other Products.
Taking 4K Video Output And Gaming As An Example
Note: A 2.4GB 4K video file (with compression) and the game League of Legends were used in the tests, results will vary between platforms!
Use the fastest SSD
SSD sequence and 4K read and write both surpass Surface Pro 7

The Following Table Shows The SSD Performance Comparison
Between WIN Max And Three Products With The Same Configuration
* Test software: CrystalDiskMark 6.02 x64;
* Test environment: 1065G7 / 1035G7, 16GB LPDDR, 256GB / 512GB SSD;
* The test results may vary slightly between different versions of CrystalDiskMark. Heat dissipation has a significant impact on the reading and writing performance.
WIN Max Only Supports Single-sided M.2 2280 SSDs
* WIN Max SSD inferfaces is Socket 3 / Socket 2 dual protocol interface, supports NVMe 1.3 / AHCI dual protocol.
Support A2 Class microSDXC Card
With Read Speed Up To 160MB/s
* WIN Max supports maxium A2 level microSDXC, can be compatible with class A1 level microSDXC
With Wi-Fi 6, WIN Max Can Give You Best
Cloud Gaming Experience With Up to 300MB/s

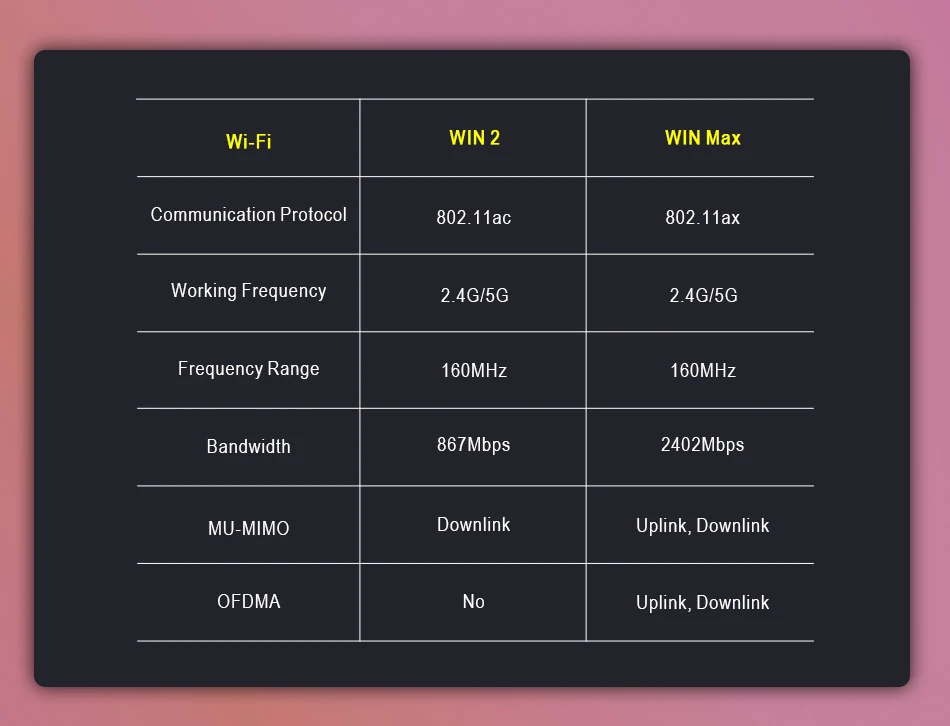

Wi-Fi 6 And Wi-Fi 5 Function Comparison Chart
Support Bluetooth 5.0
Connect To Seven Bluetooth Devices At Most
* Notes: Long-distance communication can only be achieved when the connected device also supports Bluetooth 5.0. It is not possible to connect two identical devices (for example, two headphones of the same specification) at the same time. The communication distance of 300 meters is a theoretical value. Most manufacturers will limit the communication distance of Bluetooth 5.0 devices to 10 meters in order to reduce power consumption. Before purchasing, please confirm whether the device supports long-distance communication.
Plentiful Ports Makes WIN Max
Perfect Substitute For Traditional Industrial Notebooks And IPCs
Equipped with world's smallest 65W power adapter.

Additional information

Weight 2.5 kg
Dimensions 50 × 40 × 20 cm
Brand Name

GPD

Port

RJ-45

Video Memory Capacity

16GB

Display Size

8"

Display Ratio

16:10

Screen Refresh Rate

60Hz

Dimensions (WxHxD)

207x145x26

Weight (Battery Included)

<1.5Kg

Hard Drive Type

SSD

Item Condition

New

Operating System

Windows 10

Origin

CN(Origin)

Model Number

WIN Max

Graphics Card Model

Intel Iris Plus

Type

Gaming Laptop

CPU Brand/Model

Intel Core i5-1035G7

Panel Type

IPS

Optical Drive Type

None

Average Battery Life(in hours)

6-8

RAM

16GB

Body Material

Magal

Package

Yes

Thickness

≥20mm

Display resolution

1280*800

Graphics Card Type

Integrated Card

Feature

Touchscreen

Product model

Intel Core i5-1035G7

of Cores / of Threads

4/8

Processor Base Frequency

1.20 GHz

Turbo Boost

3.70 GHz

TDP

15 W, 20W, 25W, Adjust in BIOS

Graphics Card

Integrated Graphics

Processor Graphics

lntel Iris Plus Graphics 940

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.05 GHz

Execution Unit

64 EU

4K Image resolution

Support

OpenGL Support

4.5

DirectX Support

12

Memory Types

LPDDR4X-3733

Two Channel Memory

Support

Hard Disk Type

M.2 SSD

Hard Disk Spec

Only Supports Single Side Device Layouts

Hard drive capacity

512GB, Replaceable, No Capacity Limit

Bus Specification

PCIe Gen 3.0 x 4 / SATA 3.0

Transfer Protocol

NVMe 1.3 / AHCI

WIFI-1

IEEE 802.11 a/b/g/n/ac/ax

WIFI -2

Support 2.4G/5G Dual-band Wi-Fi

WIFI-3

Maximum Transmission Rate Of 2402Mbps

Bluetooth

5.0

Keyboard

QWERTY, Backlight

Mouse

Analog Simulated Mouse,

Joystick

Double 3D Joystick, L / R

D-Pad

Split Direction Keys

Game Function Buttons

ABXY

Battery Capacity

57Wh, 11.4V, 5000mAh3 Series

Net weight

790g

warranty

1 year
